Features

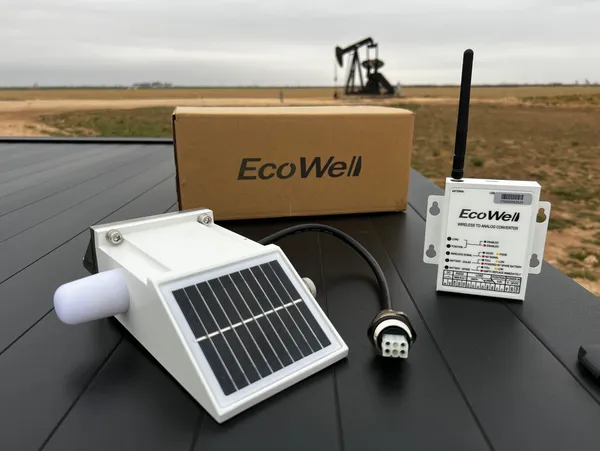

- Dual Power System: Solar as the primary and lithium battery as backup power source.
- Enhanced battery capacity and state-to-art circuit board management, ensuring broader working temperature range and longer battery life.
- Load and position signals.
- Seamless integration with existing controller.
- Indicators for system status onsite
- RS232/RS485 Modbus communication for remote monitoring.

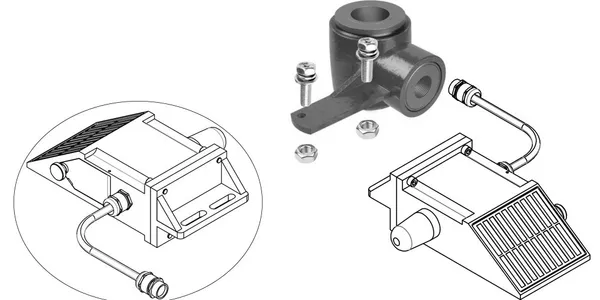

- Easy plug into an existing wired load cell.
- USB port allows to read load, position data and battery voltage.
- CSA, IECEx, ATEX
- Class 1, Division 2, Groups A B C D T6
Specifications
- Data precision ±99%.
- Working temperature -67°F to 140°F.
- Broad telemetry range of up to 1640 ft.
- Data reading rate: 20ms.
- Solar battery lifetime over 10 years.
- Allowed overload 150%.
Applications
- Linear Pumping Unit
- Beam Pumping Unit
- Intergate with optional external sensors
- Convert a wired load cell to wireless one
